ホーム /製品/超音波深度計/Ultrasonic Level Meter Sensor Sewage Liquid Depth Ultrasonic Water Level Measurement For Tank

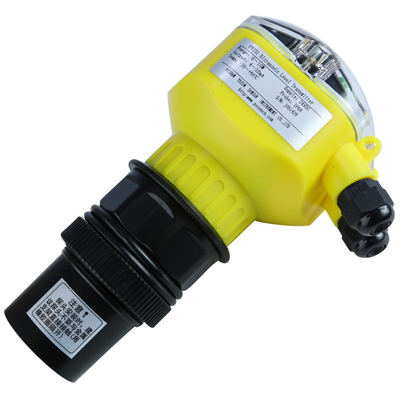

Ultrasonic Level Meter Sensor Sewage Liquid Depth Ultrasonic Water Level Measurement For Tank

1 Piece
MOQ
$198.00(1 - 19 Pieces) $196.00(20 - 299 Pieces) $190.00(>=300 Pieces)
価格
Ultrasonic Level Meter Sensor Sewage Liquid Depth Ultrasonic Water Level Measurement For Tank
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Grade: Industrial
Warranty: 1year
Customized support: OEM, ODM
Model Number: PY231
Type: Ultrasonic Level Measurement
Measuring range: 5,10,15,20,25,30
Output signal: 4-20mA/HART
Accuracy: 0.5%
Power supply: 24VDC
Output: 4-20 MA Liquid Ultrasonic
Material: plastic
Sealing level: IP68
Application: sewage ,wells,water tank,river
Measured media: liquid level and material level
基本情報
Model Number: PY231
お支払配送条件
Packaging Details: Strong Carton Box
Supply Ability: 10000 Piece/Pieces per Year Ultrasonic Level Measurement
製品の説明
Integrative Type
Level Range
Economic Type: 5M, 10M, 12M.
Standard Type: 5M, 10M, 15M, 20M, 30M, 50M.
Accuracy
0.25%-0.5%F.S
Blind Zone
0.2-0.6m
Working Pressure
2 Bar (Explore Proof Type is 5 Bar)
Resolution
3mm or 0.1%F.S (Max of them)
Display
English language display:Level measurement, distance measurement,
transmission value,
ambient temperature, echo state, alarm display, algorithm selection.
Analog Output
4~20mA/750Ω load resistance (2 wire)
4~20mA/250Ω load resistance (4 wire)
1~5 V (3 wires)
0~5 V (3 wires)
0~10 V (3 wires)
Relay /Alarm Output
AC 250V/ 8A;
DC 30V/ 5A;
State programmable (optional for 4 wire)
Power Supply
24VDC 120mA
12VDC (available to offer power by motor, battery or solar power and so on.)
Environment Temperature
Meter: -20~+60℃
Sensor: -20~+80℃
Communication
RS485 Communications (optional)
Explore Proof
Ex(ia)ⅡCT6
Water Proof
Economic Type: IP65
Standard Type: IP66
Cable of Sensor
Null
Sensor Installation
By level range and model code
Store Request
Temperature: -20~+80℃
Pressure: atmospheric pressure
Humidity: ≤90%RH
Others:Non-corrosive gases (optional corrosion probe) or steam, no vibration.
Segregated Type
Level Range
5M, 10M, 15M, 20M,30M, 50M, 70M.
Accuracy
0.25%-0.5%F.S
Blind Zone
0.2-0.6m
Working Pressure
2 Bar (Explore Proof Type is 5 Bar)
Resolution
3mm or 0.1%F.S (Max of them)
Display
English language display:Level measurement, distance measurement,
transmission value, ambient temperature, echo state, alarm display,
algorithm selection.
Analog Output
4~20mA/750Ω load resistance
1~5 V (3 wires)
0~5 V (3 wires)
0~10 V (3 wires)
Relay /Alarm Output
AC 250V/ 8A;
DC 30V/ 5A;
State programmable (optional)
Power Supply
220VAC+15% 50Hz
24VDC 120mA
12VDC (available to offer power by motor, battery or solar power and so on.)
Environment Temperature
Meter: -20~+60℃
Sensor: -20~+80℃
Communication
RS485 Communications (optional)
Explore Proof
Ex(ia)ⅡCT6
Water Proof
Meter: IP65
Sensor: IP68
Cable of Sensor
Standard: 10 Meters, Max to 200 Meters
Sensor Installation
By level range and model code
Store Request
Temperature: -20~+80℃
Pressure: atmospheric pressure
Humidity: ≤90%RH
Others:Non-corrosive gases (optional corrosion probe) or steam, no vibration.


Product feature

[ 1 ] built-in intelligent temperature compensation circuit, better performance.Material level, liquid level, ranging, display,
transmitter done, more cost-effective.
[ 2 ] echo processing technology: ultrasonic level meter is built with a signal analysis and processing unit to automatically eliminate false signals to ensure the authenticity of data.
[ 3 ] the level gauge adopts the multi-point transmitting circuit, which makes the measurement result more reliable and solves the problem that the object level is uneven and the measurement is not accurate.
[ 4 ] the fully enclosed probe is adopted, and the one-piece casting is seamless,effectively protecting the probe and prolonging its service life.
[ 5 ] the digital liquid crystal display displays the object level, distance, current and temperature in the same screen more directly and conveniently.
FAQ
Q:What kind of products do you offer ?
A:We supply pressure sensor, level sensor, flow meter and digital controllers.We’re professional in sensor area for over 13 years.

Q:Where is your company located?Could I visit your factory?
A:Our company is located in Foshan Guangdong province.Sincerely invite you to visit our factory.

Q:Could I get samples?
A:We have materials in stock to help you to get the samples as soon as we can.Welcome to contact us by e-mail or alibaba for your your required.

Q:How does your factory do regarding QC?
A:Quality is priority.We always consider quality as the most important thing during the whole production process. We have the certification of ISO, CE.We could send the certification to you if needed.

Q:Can you offer OEM or Design services?
A:Yes.Our products are independently designed and manufactured.We can offer OEM service according to your requirement,including products function,logo,packing etc.

Q:what is your after-sale service?How about the warranty?
A:We offer guarantee on our product for 12 months and we have a professional after-sales team at your service.

Q:What about your delivery time?And how do you delivery the goods?
A:RTS products can be delivery within 2-7 days.Customized products shall be arranged according to the orders.Many delivery service can be choosed,like DHL,FedEx,TNT,Airline and sea shipping.

Q: How can I get the quotation or send my inquiry to?
A: Send your inquiry to us by the inquiry from on the right-side or the bottom of this page.

How to order?
A. In order to recommend you most suitable solution and best offer, please provide the following information when send inquiry, thanks !

1. What is the tested medium? Water, oil, gas or others.
2. Measure range: 0-200bar or ...?
3. Output signal:4-20mA, 0~5V RS485 or..?
4.Medium Temperature:under normal Temp. or heating
5. Require quantity?
