ホーム /製品/皮の厚み計/Accurate Portable Digital Thickness Gauge 25mm Concave Convex 225mm Factory Price Coating Thickness Gauge Good

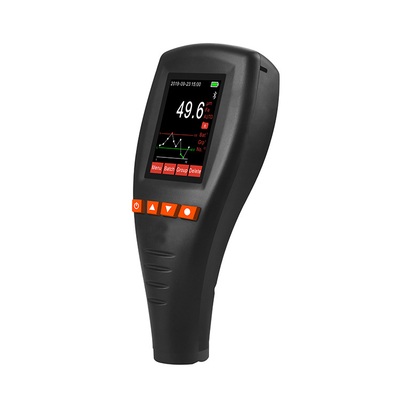

Accurate Portable Digital Thickness Gauge 25mm Concave Convex 225mm Factory Price Coating Thickness Gauge Good

2 Pieces
MOQ
Accurate Portable Digital Thickness Gauge 25mm Concave Convex 225mm Factory Price Coating Thickness Gauge Good
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Warranty: OEM
Customized support: OEM
Model Number: EC-555S
Model code: EC-555S
Measuring Range: 0~2000 μm(other ranges can be customized)
Accuracy: ±(2%+1μm)
screen: 2-inch color screen
Measurement speed: 2 walks per second
Measuring regional: 215 mm diameter
Base material crank radius: Convex 25mm concave 225mm
Operating temperature Temperature: -10-+50C;
証明: OEOM
基本情報
証明: OEOM
Model Number: EC-555S, EC-555S
お支払配送条件
製品の説明
Product Description
NEW 2 inch color screen
With Bluetooth and APP function
Coating Thickness Gauges
Mearing principle: Magnetic induction(F)/Eddy current(N)
Range: 0~2000 μm(other ranges can be customized)
accuracy of ±(2%+1μm)
Resolution is up to 0.1μm
Speed: 2 records 1 second
Accuracy of measurement +(2%+1um) The thickness of the base material Fe: 0.20 mm NFe: 0.03 mm The screen 2-inch color screen The probe channel Ferromagnetic F probe/non-ferromagnetic N probe The principle of Magnetic induction/eddy current effect Measuring range 0-2000um Measurement speed 2 walks per second Measuring regional 215 mm diameter Base material crank radius Convex 25mm concave 225mm The resolution of the 0-100um (0.1um) Other (1um) Data points can be recorded 1013*10 measurements Operating temperature Temperature: -10-+50C; Humidity: 20-90%6RH (non-condensation) Keep the temperature Temperature: - 20 - + 60 * 5; Humidity: 20-90%RH (non-condensation) Protection grade IP40 Configuration mode User configuration Operating temperature of battery -10-50C Dimension and weight
133*68*30mm 90g Authentication information
CE.ROHS,5O 21 78.2360.GB/T 4956- 2003, 4957-2003JJG-818-2005
Model code
EC-555S
Measuring Range
0-2000um
Accuracy
±(2%+1μm)
Resolution
up to 0.1μm
Packing & Delivery
Company Introduction

Fuzhou Banko Electronic Co., Ltd.

BANKO company is a professional of beauty equipment, medical equipment, skin analyzer system beauty salon products and so on. we can provide OEM and ODM service for the distributors all over the world.
