Detection temperature of normal temperature probe | -25 ℃ -200 ℃ |
High temperature probe detection temperature | 200 ℃ -600 ℃ |

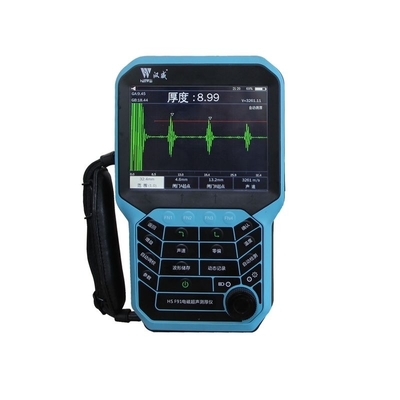

Display | bright true color 640 × 480 daylight readable LCD,Maximum A-scan size 115.2 × 86.4 |
Gain | 0-80dB (adjustment accuracy: 0.1dB / 2dB / 6dB) |
Equivalent input noise | <80 × 10-9V/Hz1/2 |
Attenuator accuracy | <± 1dB / 12dB |
Vertical linear error | <3% |
Horizontal linear error | ＜0.1% |
Detection method | positive, negative detection, full detection and radio frequency |
Battery | 7.4V DC, lithium battery, continuous working for 8 hours |
Size | 220mm in length × 125mm in width × 40mm in thickness |
Machine weight | 1.35kg |
